品牌: Zhuhai Bright Aviation Inc.，China
型號: ATIS-202A
描述: After collecting and processing the airport weather forecast and runway opening conditions and other information, the system will repeatedly provide the landing flight with weather and runway conditions information broadcast service system through VHF ground to air communication radio for 24 hours.
Airport facilities and brand suppliers
- Navigation EQP
- Communication EQP
- Weather EQP
- Surveillance EQP
- Terminal EQP
- Transmission EQP
- Instrument
- Lighting EQP
- Power Supply EQP
- Other Projects
Product
.png)
ATIS-202A Automatic Terminal Information Service System（ATIS）
一、Business
“Bright Aviation” Supplies Complete Sets Of Equipment, Including Installation And Commissioning, Factory Training, After-Sales Service, Technical Consultation, Spare Parts Support, Equipment Troubleshooting, Software Optimization And Upgrade And Other Turnkey Projects.
二、Overview
1.ATIS (Automatic Terminal Information Broadcast System) is a broadcast service system that provides weather and runway condition information for landing flights on the airport repeatedly 24 hours a day through VHF ground to air communication radio after collecting and processing airport weather forecast messages (AFTN and SITA), runway opening conditions and other information.
2. ATIS broadcast content: Real time weather, available runways, air pressure, and altimeter correction values at the landing airport. The flight crew actively learns about relevant information about the landing airport by listening to the VHF broadcast frequency, reducing the voice communication load and work intensity of the tower controller in the VHF communication channel, and avoiding congestion in the VHF radio channel.
3.The broadcast content includes METAR and SPECI messages of weather forecast updated every hour, or AWOS data of automatic weather observation system updated in real time.
三、System Structure

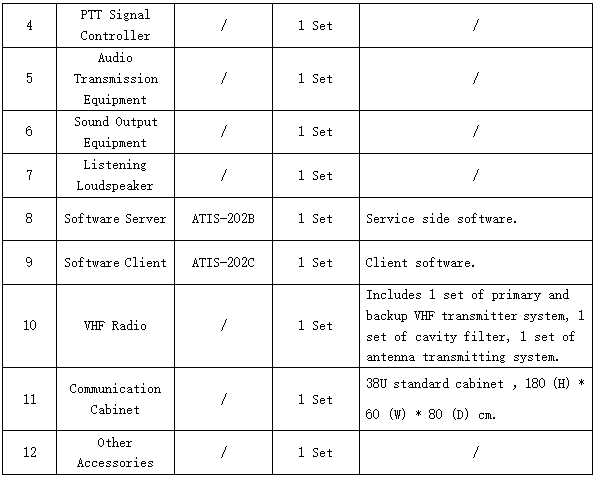

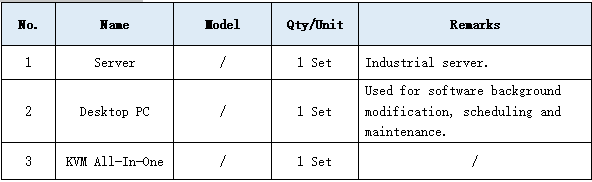

四、Equipment List
五、Function
1. Receive weather live message data (AFTN and SITA).
2. Receive Automatic Weather Observation System （AWOS） data.
3. Receive input information.
4. Set system parameters.
5. Input the slot information.
6. Synthetic output audio voice information.

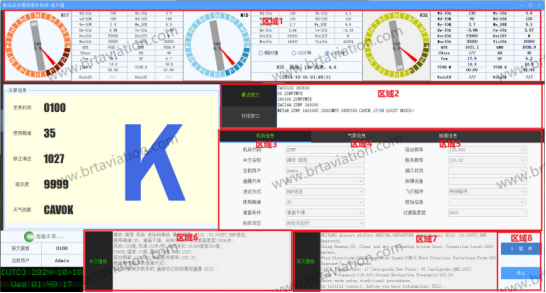

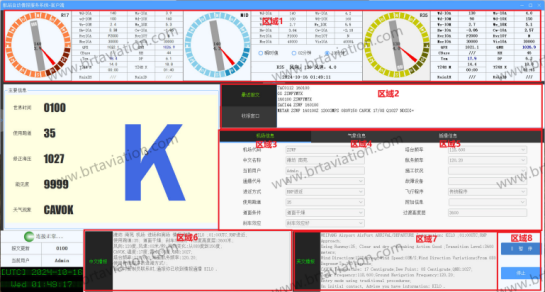

六、Software Interface
Area 1: Weather self observed AWOS data.
Area 2: Weather telegrams for this site.
Area 3 : Receive all telegrams.
Area 4: Basic airport information.
Area 5: Telegram parsing data.
Area 6: Chinese Broadcast Information
Area 7: English broadcasting information.
Area 8: VHF radio switch control.
七、Mechanical
1. Weight：160kg.
2. Size: 120 (H) * 60 (W) * 80 (D) cm, standard 22U cabinet.
3. Primary Power：110～220V AC±15%，45～63 Hz，single phase.
八、Environmental
1. Temperature: Indoor -10°C～+50°C, Outdoor -50°C～+70°C.
2. Relative Humidity: indoor 0～95% (non condensing)；outdoor 0～100%.
3. Altitude: 0～4500m MSL.
4. Work Cycle: continuous unattended.
九、Application Airport
Weifang Airport in Shandong Province, Ordos Airport in Inner Mongolia, Nanchong Airport in Sichuan Province, Dunhuang Airport in Gansu Province, Wudangshan Airport in Hubei Province and other Chinese airports.
