一、Business

“Zhuhai Bright Aviation”provides equipment supply, installation and commissioning, technical guidance, panel repair, factory training, after-sales service, technical consultation, spare parts support, equipment fault maintenance, periodic patrol inspection, system optimization and upgrading, etc. (Turnkey Project).

二、Overview

1、 Automatic Weather Station (AWS) provides six elements (wind direction, wind speed, temperature, humidity, pressure, precipitation) of conventional weather

around the airport runway. It is one of the necessary infrastructures in the modern aviation system through high-precision and highly reliable real-time weather data to ensure flight safety of airport flights and improve flight operation efficiency.

2、"Automatic Weather Station", also known as "Conventional Weather Observation Station", "Conventional Weather Observation System", "Conventional Automatic Weather Observation Station", etc.

3、The difference between "AWS"  and "AWOS" :

(1)  "AWS" is a simple set of weather observation equipment, which only provides and measures six elements of conventional weather data (wind direction, wind speed, pressure, temperature, relative humidity and precipitation) and system software around the airport runway.

(2)  "AWOS" can not only provide and measure the six elements of conventional weather data around the airport runway, but also provide the runway visual range, cloud height, weather phenomenon and other sensor data, and is equipped with a powerful monitoring and automation software integration system.

三、Characteristic

1. Monitor the data of six weather elements (wind direction, wind speed, temperature, humidity, pressure, precipitation) 24 hours a day.

2. Real time monitoring data. When the threshold setting value is exceeded, visual graphics and voice alarm prompt will be provided in time.

3. Perfect weather observation software, lifelong free system upgrade.

4. Communication mode: wired (optical cable or telephone cable) or wireless dual backup communication mode (optional).

5. Power supply mode: AC and DC power supply.

6. Stainless steel support and outdoor protection box are used. The box is solid, beautiful, corrosion resistant, waterproof and moisture-proof.

7. Continuous working for 24 hours, working stability ≥ 10 years.

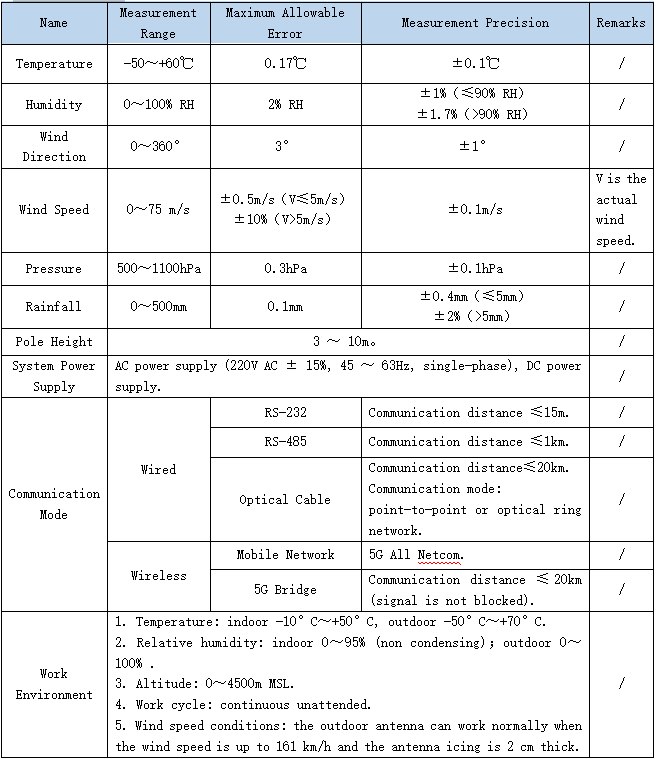

四、Parameter

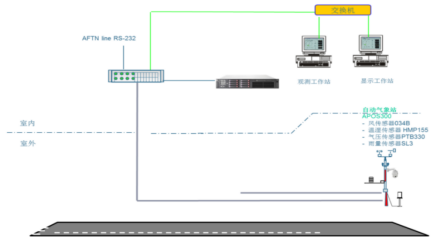

五、System Block Diagram

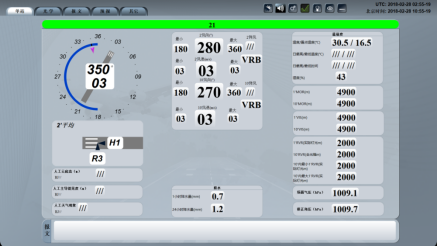

六、Software Interface

七、Field Observation Equipment

"Automatic Weather Station" outfield observation equipment, including: temperature and humidity sensors, wind direction and speed sensors, rainfall sensors, pressure sensors, etc.

（1）Temperature And Humidity Sensors（HMP155）

（2）Wind Direction And          （2）Wind Direction And

Speed Sensors（034B）          Speed Sensors（WAA151/WAV151）

（3）Rainfall Sensors（SL3-1）

（4）Pressure Sensors(PTB330)

（5）Aluminum Alloy Folding Wind Pole (10m)

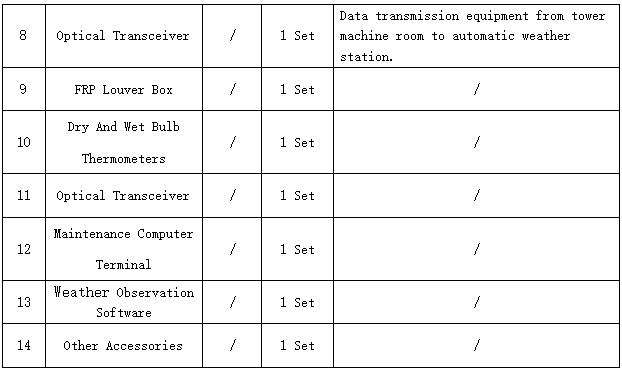

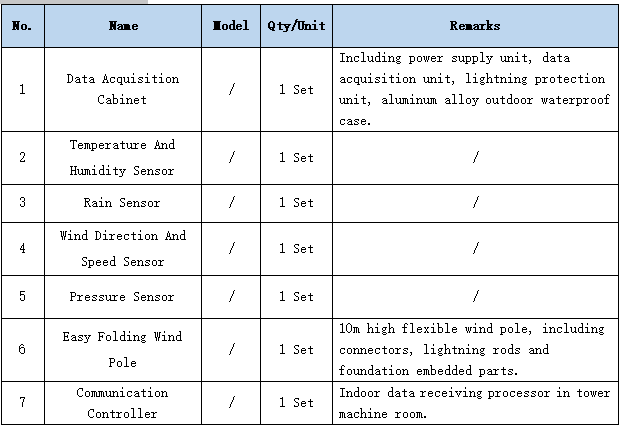

八、Equipment List

九、Installation Engineering

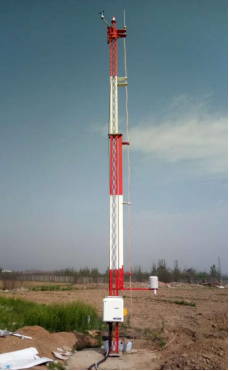

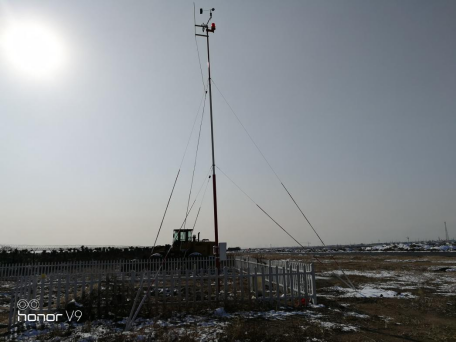

On December 28, 2020, “Zhuhai Bright Aviation” completed the supply, installation, commissioning and training of equipment for the "Automatic Weather Station" at Rizhao Lanshan Airport, Shandong Province, China. Outdoor equipment is shown in the figure below.

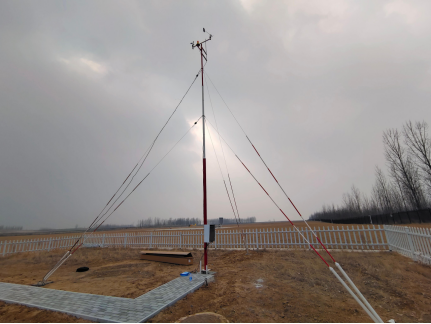

（2）In March 2024, “Zhuhai Bright Aviation” completed the supply, installation, commissioning and training of equipment for the "Automatic Weather Station" and the "Emergency Forest Protection Station" in Tai'an City, Shandong Province, China. Outdoor equipment is shown in the figure below.

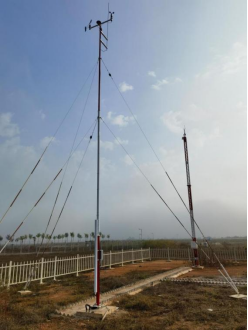

（3）In January 2024, “Zhuhai Bright Aviation” completed the supply, installation, commissioning and training of equipment for the "Automatic Weather Station" of Bojiao Airport in Laos. Outdoor equipment is shown in the figure below.

十、Standards

1. CAAC,《Civil Aviation Weather Code Standard》, MH/T4016.6-2008。

2. CAAC，《Code for Ground Observation of Civil Aviation Meteorology》, AP-117-TM-02R1。

3. CAAC,《Civil Aviation Meteorology, Part 9: Data Output Format Standard of Automatic Weather Observation System, MH/T4016.9-2011。

4. CAAC，Technical Specification for Civil Aviation Automatic Weather Observation System, AP-117-TM-2018-03R1。

6. CAAC，Technical Specification for Meteorological Observation Data Processing System of Civil Airport, AP-117-TM-2012-04。

7. CAAC，General Technical Requirements and Inspection Specifications for Fragile Pole and Tower, AC-137-CA-2014-01。

8 ICAO，Annex 3.
